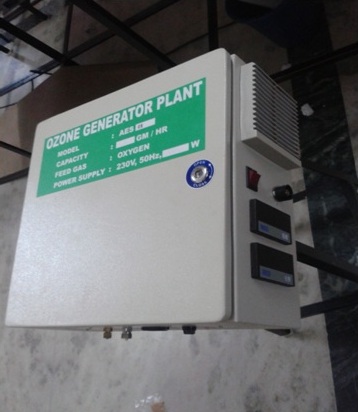

O Z O N E   G E N E R A T O R   P L A N T



Diversified Industrial Use:

Food Processing
Bakery & Confectioneries
Dairy
Wineries
Horticulture
Process | Packing
Storage | Cold Storages
R & D Labs
Pharmaceutical
Medical & Health Care
Hotels | Resorts | Hospitality
Smoking Lounges
House Keeping | Tank Cleaning
Bar | Pubs | Restaurants | Clubs
AHU Duct Cleaning & Disinfecting
Godown | Store Rooms
Clean Rooms
Corporate Offices
Schools | Colleges
Shopping Malls
Theaters
Gym | Sports Clubs
Mosque | Temples | Churches

Mode of Operation:

As per different operation conditions & requirements, air ozone generators can be used in followings operating modes: Position 1-7 : The ozonator is automatically put in ON and OFF as per the pre programmed timing which is given below. The user can chose the set point based on the actual requirement.

0 – Standby mode.
1- 0.5min ON and 4.5min OFF.
2- 1min ON and 4min OFF.
3 – 1.5min ON and 3.5min OFF.
4 – 2min ON and 3min OFF.
5 – 2.5min ON and 2.5min OFF.
6 – 3min ON and 2min OFF.
7 – 30mins ON and then OFF for ever.
8 – 60min ON and then OFF for ever.
9 – 90mins ON and OFF for ever.

The selection of the positions can be set by using a button switch in the machine. According to the requirement, area, pollution load , the positions can be set by the user.

Technical Specifications & Scope of Supply:

Model No.	AZ/LC /200 /500/2000
Make	AUROZONE
Feed Gas	Ambient Air (built in air pump)
Ozone Concentration	40.0 – 60 ppm in air
MOC of Ozone Cell	Ceramic/Quartz glass
Cell Cooling	Induced Air cooled
Heat Dissipation	Aluminum heat sink
Working principle	Corona Discharge
MOC – Enclosure	SS Powder coated/ABS Plastic
Line Voltage	230 V AC , Single phase, 50 / 60 Hz
Power	20 W for 200mg and 80W for 2000mg
Weight	0.5kg for 200mg and 15kg for 2000mg
Dimension	300 mm(L) x 250 mm(H) x 60 mm(D) for 200mg and 400x400x160 for 2000mg
Standard Accessories	Maine Cord – 2 meters
Accessories	Ambient Ozone Monitor
